| General data |
| Product name |

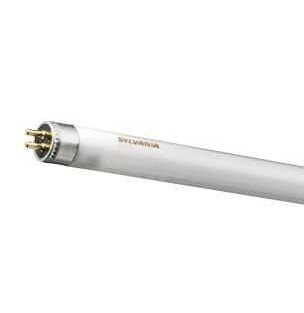

24W/T5/840 FHO |
| Technology |
Fluorescent |
| Watt (Rated) (W) |
24 |
| Lamp shape |
Tube, double-ended |
| Type |
T5 FHO Luxline Plus |
| Cap/Base |
G5 |
| Lamp finish |
Frosted/Coated |
| Fixture rating |
Open |
| General application |
Education, Hospitality, Logistics & Industry, Museums & Galleries, Office, Retail, Residential & Consumer |
| ETIM Class |
EC000108 |
| E-number FI |
4944324 |
| E-number SE |
8356536 |
| E-number Norway |
3800909 |
| Optical data |
| Luminous flux (lm) |
1750 |
| Luminous flux (Rated) (lm) |
1750 |
| Luminous flux (Nominal) at 35°C (lm) |
1950 |
| Rated lamp efficacy 100h 50Hz at 35°C (lm/W) |
74 |
| Ambient temperature for maximum luminous flux (°C) |
35 |
| Colour temperature (K) |
4000 |
| Light colour |
Cool White |
| Colour Code |
840 |
| CRI (Ra) |
85 |
| Colour Variation Initial (SDCM) |
SDCM5 |
| Adjustable chromaticity |
N |
| Photobiological Risk Group |
Not applicable |
| Rated lumen maint. factor (%) at 2000 h 50Hz |
0.97 |
| Rated lumen maint. factor (%) at 4000 h 50Hz |
0.95 |
| Rated lumen maint. factor (%) at 6000 h 50Hz |
0.93 |
| Rated lumen maint. factor (%) at 8000 h 50Hz |
0.92 |
| Rated lumen maint. factor (%) at 12000 h 50Hz |
0.91 |
| Rated lumen maint. factor (%) at 16000 h 50Hz |
0.90 |
| Rated lumen maint. factor (%) at 20000 h 50Hz |
0.88 |
| Electrical data |
| Wattage (W) |
24.00 |
| Watt (Rated) - High frequency (W) |
23.50 |
| Current (A) |
0.300 |
| Product Voltage (V) |
75 |
| Control gear required |
Yes |
| Transformer required |
No |
| Dimmable |
Yes |
| Drive current (mA) |
300 |
| Lamp Energy Label (class) |
G |
| kWh per 1000 hours burning time |
26 |
| Lifetime data |
| Average life (Nominal) (h) |
24000 |
| Average life (Rated) (h) |
24000 |
| Rated survival factor (%) at 2000 h 50Hz |
0.99 |
| Rated survival factor (%) at 4000 h 50Hz |
0.98 |
| Rated survival factor (%) at 6000 h 50Hz |
0.96 |
| Rated survival factor (%) at 8000 h 50Hz |
0.94 |
| Rated survival factor (%) at 12000 h 50Hz |
0.93 |
| Rated survival factor (%) at 16000 h 50Hz |
0.90 |
| Rated survival factor (%) at 20000 h 50Hz |
0.84 |
| Physical data |
| Nominal Product Length (mm) |
550.0 |
| Nominal Product Diameter (mm) |
16 |
| Max. Length base to base (mm) - A |
549.0 |
| Length base to pin Min-Max (mm) - B |
553.7-556.1 |
| Max. Lamp Length (mm) - C/L |
563.2 |
| Max. Lamp Diameter (mm) - D |
17.0 |
| Weight (kg) |
0.043 |
| Packaging |
| Single packaging type |
Carton |
| Product EAN number |
5410288027739 |
| Packaging single length / height (cm) |
56.4 |
| Packaging single width (cm) |
44440 |
| Packaging single depth (cm) |
44440 |
| DUN14 (outer) |
15410288027736 |
| Units per outer package |
25 |
| Packaging outer length / height (cm) |
57.8 |
| Packaging outer width (cm) |
44326 |
| Packaging outer depth (cm) |
44326 |
| Safety data |
| Lamp mercury content (mg) |
10990 |
| Breakage cleaning instructions |
Applicable |
| Recommendation for disposal at end of life |
Applicable |
| Special purpose lamp |
No |
| Intended purpose |
General lighting |
| Suitable for household illumination |
Yes |
